Magnet Wire Packaging Data (North America)

High-performance Continuously Transposed Cable (CTC) for transformer applications. Available in 120–200°C thermal classes, 5–79 strand configurations, and multiple insulation options including PVA, PEI/PAI enamel, cellulose paper, and Nomex®. Designed for optimal electrical performance, flexibility, and efficiency in standard and Twin CTC constructions.

GP/MR-Extra® is a 220°C copper magnet wire, 1-36 AWG, with polyester/polyamide-imide insulation, thermally upgraded for demanding applications.

PolyBondex® T Bond M is a 180°C copper and aluminum magnet wire, 14-21.5 AWG, with polyester and epoxy insulation for compact, self-supporting coils.

GP/MR-200® - CU is a 200°C copper magnet wire, 4-33 AWG, with polyester/polyamide-imide insulation for severe and heavy-duty applications.

Essex bondable magnet wire products are an excellent choice for applications requiring the magnet wire to be a compact, self-supporting coil.

Soderon® FS/155 - AL is a 155°C copper and aluminum magnet wire, 10-33.5 AWG, with polyurethane and polyamide insulation for fast soldering.

Solidon® is a 180°C copper magnet wire, 23-28 AWG, with modified solderable polyester-imide and polyamide insulation for solder-strippable applications.

Wrapped Magnet Wire is the application of a single or double layer of insulating material over a bare or film-coated conductor. All conductors except paper wrapped are then heated, which fuses the insulation material to the conductor.

Wrapped Magnet Wire is the application of a single or double layer of insulating material over a bare or film-coated conductor. All conductors except paper wrapped are then heated, which fuses the insulation material to the conductor.

Formvar-EXTRA is a synthetic film insulation containing modified polyvinyl acetal and phenolic resins. Formvar-EXTRA is basedon the same enamel formulation that has been in use for over 50 years.

High-Voltage Winding Wire (HVWW®) is a 240°C copper magnet wire with polyether-ether-ketone and polyamide-imide insulation for advanced motor technology.

GP/MR-200® HD is a 200°C copper magnet wire with polyamide-imide and polyester insulation, engineered for enhanced dielectric strength and thermal properties.

UltraShield® Plus is a 200°C copper magnet wire, round 9-30 AWG, insulated with polyamide-imide and polyester for enhanced voltage endurance and thermal properties.

Amide-Imide is a 220°C copper magnet wire, 4-46 AWG, insulated with polyamide-imide for abrasion resistance and high thermal endurance.

Allex® is a 240°C copper magnet wire, 4-33 AWG, insulated with polyimide for use in aerospace, nuclear, and high-temperature applications.

GP/MR-200® - AL is a 200°C/220°C copper and aluminum magnet wire, available in round and rectangular shapes, insulated with polyester/polyamide-imide for severe-duty applications and high thermal endurance.

PolyBondex® G Bond M is a 180°C copper and aluminum magnet wire, 15-33 AWG, with epoxy and polyester insulation for self-supporting coil applications.

PolyBondex® G Bond S is a 180°C bondable magnet wire in copper and aluminum, 16-28 AWG, with aromatic polyamide, polyamide-imide, and polyester insulation for self-supporting coil applications.

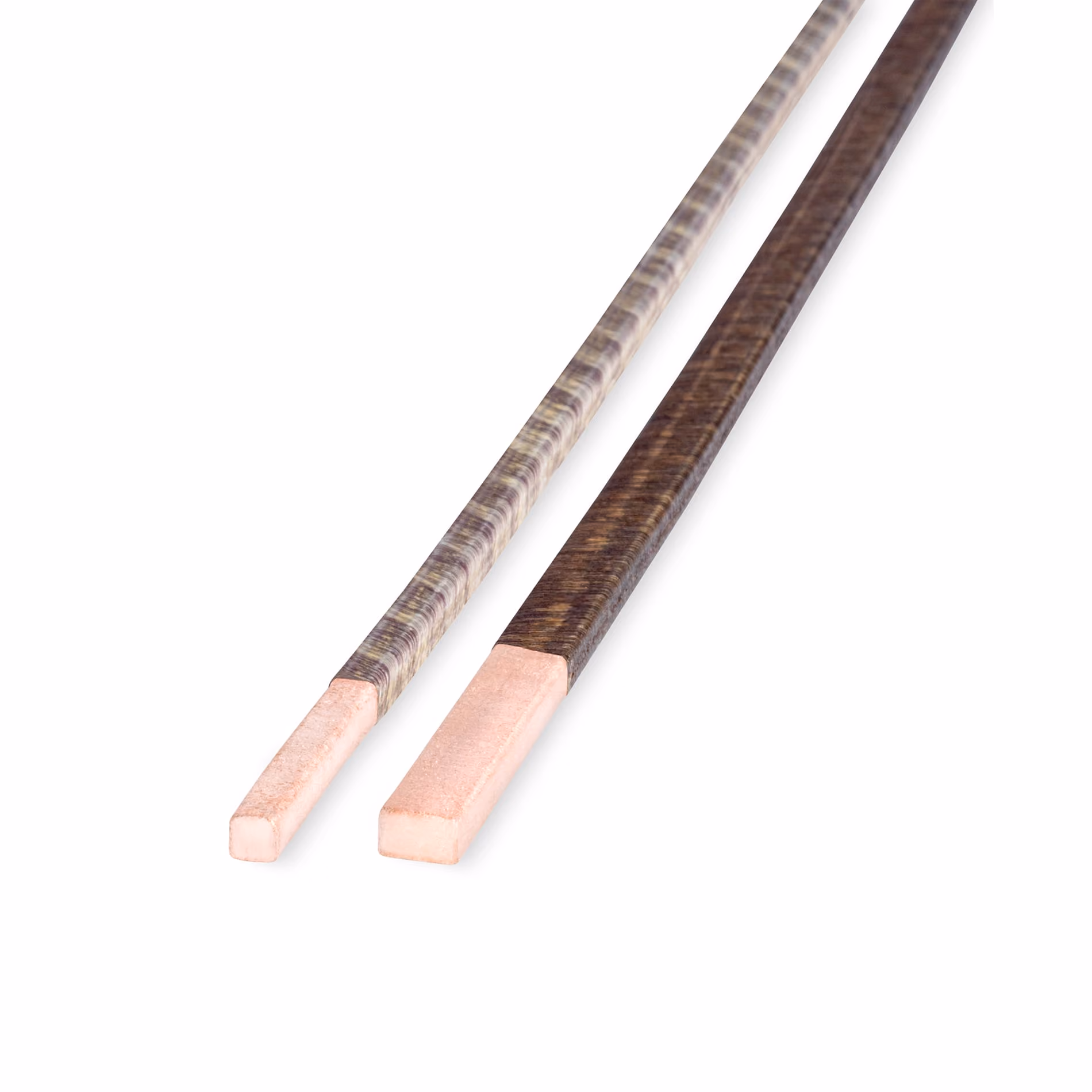

Single Polyester Glass over Heavy GP/MR-200® is a 155°C copper magnet wire with polyester, polyamide-imide, and polyester-glass insulation for enhanced durability.

Aromatic Polyamide Tape - AL is a 240°C aluminum magnet tape designed for high-temperature insulation and electrical applications.

EnduroTemp® 260+ Round is a 265°C copper magnet wire with polyamide and polyamide-imide insulation for high thermal endurance applications.

UltraShield® Extra is a 220°C copper magnet wire, 9-30 AWG, with polyamide-imide and polyester insulation for inverter duty motor applications.

PolyBondex® T Bond E is a 180°C copper and aluminum magnet wire, 15-33 AWG, with polyester insulation for reliable electrical performance.

PolyFlex® 225 is a 200°C aluminum magnet wire with polymer and polyvinyl acetal insulation, offering high temperature resistance and compatibility with transformer oils.

Formvar is a 105°C copper and aluminum magnet wire with polyvinyl acetal insulation, available in round, square, and rectangular sizes for electrical applications.

Solidex® is a 180°C copper magnet wire, 22-28 AWG, with modified solderable polyester-imide insulation for high thermal resistance and solderability.
