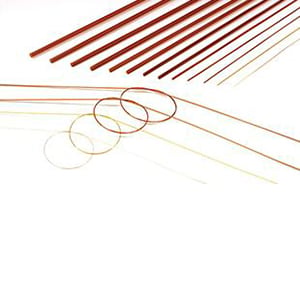

PI-Tube Polyimide Tubing (FS, LS, S)

Polyimide tubing has the thermal class 220°C or higher, and can withstand instantaneous temperatures up to 400°C, making it the most heat-resistant among resin tubing. It also features high tensile strength, elastic modulus, and chemical resistance, and is frequently used in electronic components and automotive electrical parts. You can select PIT-S and PIT-FS (small bore tubing) depending on the inner diameter.

Features include:

​

​

• Temperature Class C - Highest Heat Resistance (240°C in continuous service, 400°C for short periods)

​

• Thinner Wall Thickness (A minimum inside thickness of 0.08mm is available and wall thickness of 0.013mm is producible.)

​

• General Versatility (outstanding in adhesion and remains unaffected in chemicals or radiation)

​

• Easy Installation

​

Nominal Inside Diameter:

​

​

• PIT-FS: 0.08~0.45mm

​

• PIT-LS: 2.50~3.00mm

​

• PIT-S: 0.20~2.00mm

​

UL No. E58401

​

**WARNING: This product is not designed for medical applications. This product is not applicable for the usage which includes direct or indirect contact to the human body, bodily fluids and for medicinal production.
