Magnet Wire Packaging Data (Europe)

High-performance Continuously Transposed Cable (CTC) for transformer applications. Available in 120–200°C thermal classes, 5–79 strand configurations, and multiple insulation options including PVA, PEI/PAI enamel, cellulose paper, and Nomex®. Designed for optimal electrical performance, flexibility, and efficiency in standard and Twin CTC constructions.

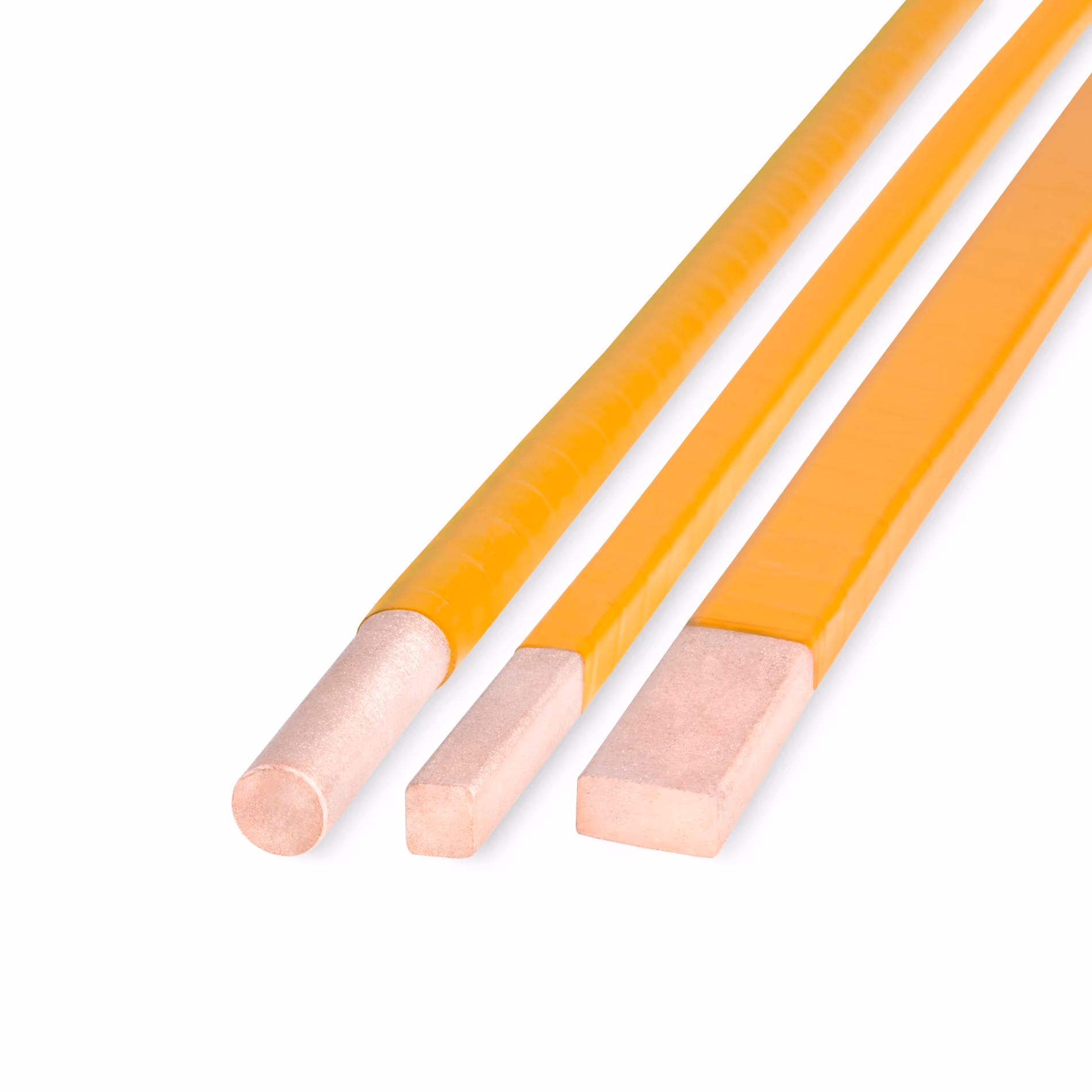

Polyamide Film Heat Sealable Magnetape® PI is a 240°C copper magnet tape designed for high-temperature insulation and electrical applications.

MagneBond® FX-120 is a 120°C copper magnet wire with polyvinyl acetal and epoxy insulation, ideal for self-bonded transformer coils.

Magnesol® E-180 is designed for windings with special thermal resistance (higher than the polyurethane one) and excellent mechanical and chemical characteristics.

MagneBond® AB-220 is a 220°C copper magnet wire with polyamide-imide insulation for self-bonded electromagnetic components and improved productivity.

Kraft Paper Thermally Upgraded and Calandered Magnetape® PK is a 120°C copper and aluminum magnet tape with pure cellose thermally upgraded paper insulation for electrical winding.

Magnesol®U-180 has heat resistance particularly with respect to cut-through and heat shock, good solderability at 390°C and excellent solderability at 410°C. Magnesol®U-180 has good chemical resistance.

High-Voltage Winding Wire (HVWW®) is a 240°C copper magnet wire with polyether-ether-ketone and polyamide-imide insulation for advanced motor technology.

Wrapped Magnet Wire is the application of a single or double layer of insulating material over a bare or film-coated conductor. All conductors except paper wrapped are then heated, which fuses the insulation material to the conductor.

Kraft Paper Calandered Magnetape® PK is a 120°C copper and aluminum magnet tape with pure cellose thermally upgraded paper insulation for electrical winding.

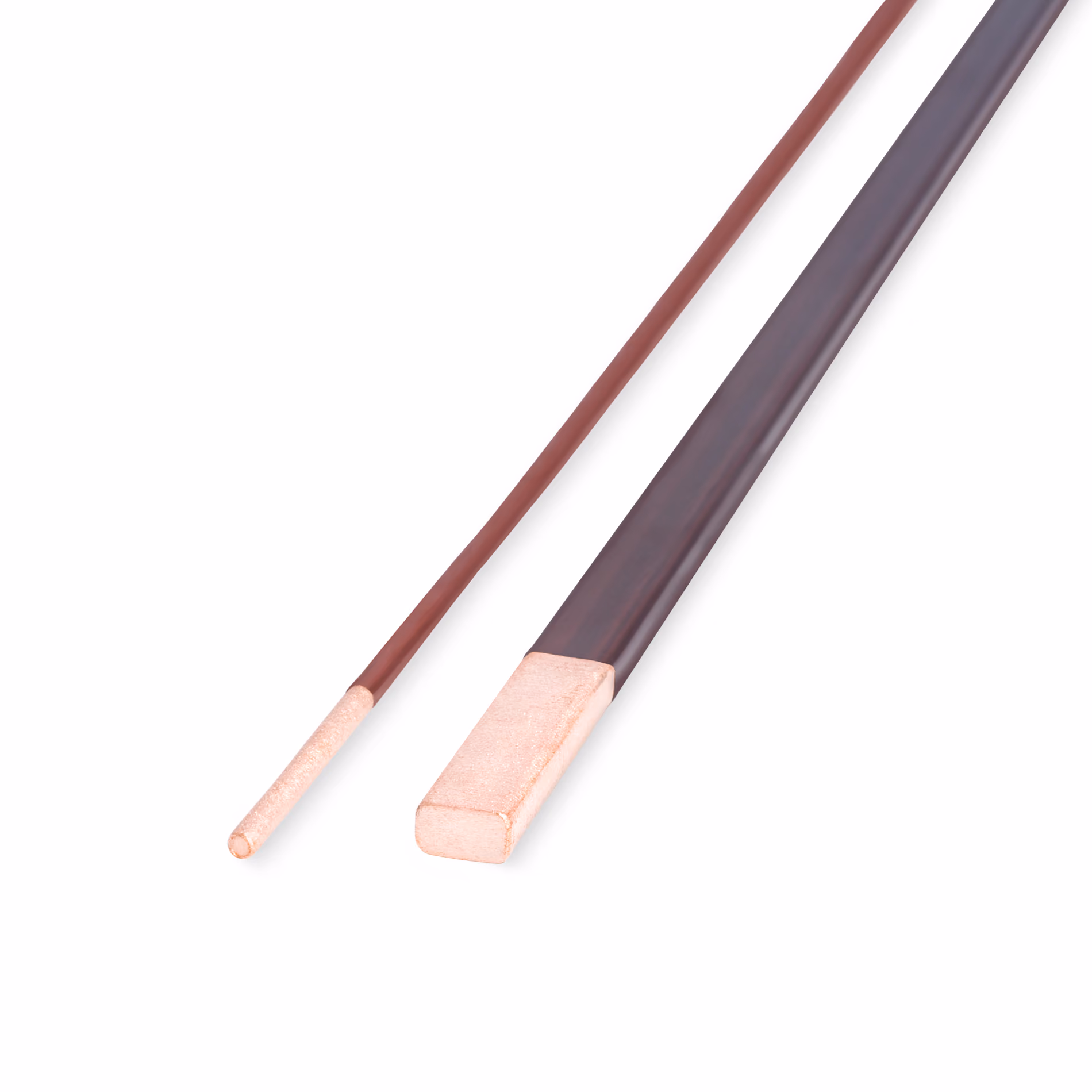

MagneTemp® A-220 is a 225°C copper magnet wire with polyamide-imide insulation, suitable for special motors, relays, and transformers.

MagneTemp® HP-220 is a 220°C copper magnet wire engineered for high-efficiency and high-reliability applications requiring superior thermal and chemical resistance.

MagneBond® UL-180 is a 180°C copper magnet wire, 0.15-1.00mm, with solderable polyurethane and polyamide aliphatic insulation for self-bonded windings.

MagneTemp® Y-240 is a 240°C copper magnet wire, 0.05-1.00mm, insulated with polyimide for superior heat shock, chemical, and radiation resistance.

MagneTemp® PA-200 & PA2-200 is a 210°C copper magnet wire with high adhesion and excellent mechanical, thermal, and chemical resistance.

Nomex® Paper Magnetape® PK is a 200°C copper magnet tape designed for high-temperature insulation and electrical applications.

Standards NEMA: MW 31, MW 33IEC: 60317-27GB: 7673.20, 7673.30Locations EuropeMarkets Energy

Main uses are found in relays, transformers, television and car components as well as the telecommunication technology, the construction of micro motors, low range motors and measure apparatus.

MagneBond® FX2-120 is a 120°C copper magnet wire with polyvinyl acetal and epoxy insulation, ideal for self-bonded transformer coils requiring high mechanical strength.

MagneBond® CAR-200 is a 210°C copper magnet wire with polyamide-imide and polyester imide insulation for self-bonded electromagnetic components.

Kraft Paper Thermally Upgraded Magnetape® PK is a 120°C copper and aluminum magnet tape with pure cellose thermally upgraded paper insulation for electrical winding.

MagneTemp CA-200® has a temperature index of 210°C with good resistance to heat shock and high temperature overload. It has excellent mechanical characteristics and chemical properties.

MagneForm® F-120 & FN-120 is a 120°C copper magnet wire with polyvinyl acetal and epoxy insulation, designed for transformer and severe condition applications.

MagneTemp® C-180 & CN-180 is a 192°C copper magnet wire, 0.05-5mm, with polyester-imide insulation for automatic winding and encapsulated coil applications.

MagneBond® CAB-200 is a 200°C copper magnet wire with polyamide-imide and polyester-imide insulation, suitable for self-bonded electromagnetic components.
