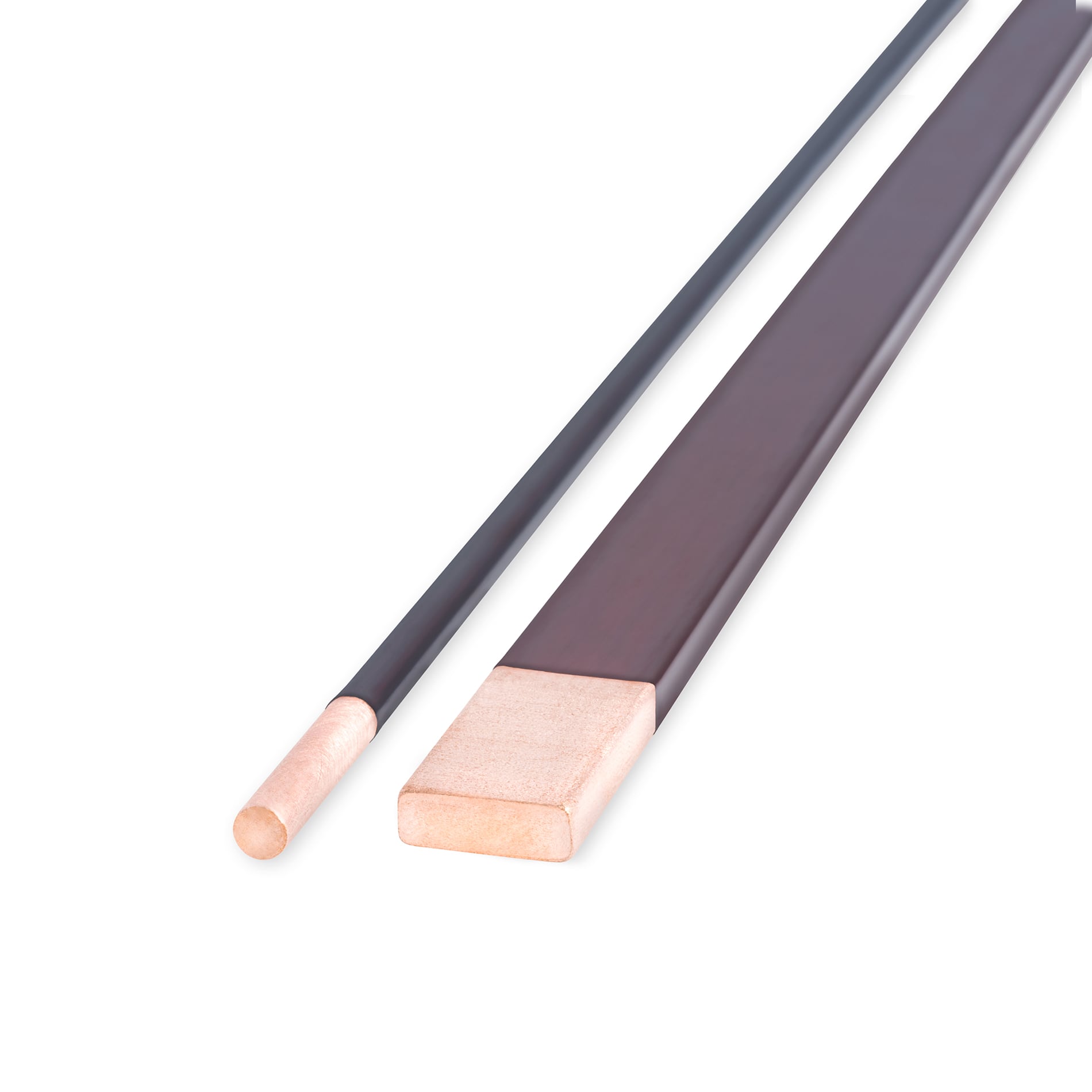

MagneTemp® CA-200 & CA2-200

Copper
Round
Rectangular
Europe
No items found.
Overview
Specs
Downloads

MagneTemp CA-200® has a temperature index of 210°C with good resistance to heat shock and high temperature overload. It has excellent mechanical characteristics and chemical properties.

Thermal Class:
210°C
Size Range:
0.060-0.11 mm, Grade 1 0.120-0.170 mm, Grade 2 & Grade 3 0.15 - 5.20 mm Diameter
Insulation:
THEIC-Modified Polyester-imide, Polyamid Imide
Standards:
NEMA: MW 35, MW 36-C, MW 73 IEC: 60317-13, 60317-29, 60317-0-2 GB: 6109.20. 7095.6-2008
Magnetemp® CA-200 & CA2-200 Datasheet (English)

Magnetemp® CA-200 has the following characteristics:

- Winding on high-speed automatic machines

- Winding that experience severe heat overloads as well as mechanical or chemical stress.

Main applications are found in motors, transformers and all coils designed for class H and higher products.

Product Datasheets
English
Countries:
No items found.
Region:
No items found.
Magnetemp® CA-200 & CA2-200 Datasheet (Chinese)

Magnetemp® CA-200 has the following characteristics:

- Winding on high-speed automatic machines

- Winding that experience severe heat overloads as well as mechanical or chemical stress.

Main applications are found in motors, transformers and all coils designed for class H and higher products.

Product Datasheets
Chinese
Countries:
No items found.
Region:
No items found.
Enamelled Winding Wire TP 001

Material Information Card TP 001 covering the Magnetemp® and Magnesol® enamelled winding wire product family and specifications.

Technical Guidelines
English
Countries:
Germany
Region:
Europe
Magnet Wire Packaging Data (Europe)

Magnet Wire Packaging Data for Europe, providing essential information on packaging standards and options for European customers.

Technical Guidelines
Packaging
English
Countries:
Germany
Region:
Europe
